Inverted 'V' Dipole Antenna




"An inverted vee antenna is a modified dipole antenna supported in the center with the ends lower than the center. Viewed from the side, it looks like the English letter "V" turned upside down, hence the name. Inverted vee antennas are commonly used by many amateur radio stations, and aboard sailing vessels requiring better HF performance than available with a short whip antenna." - Courtesy of Wikipedia.

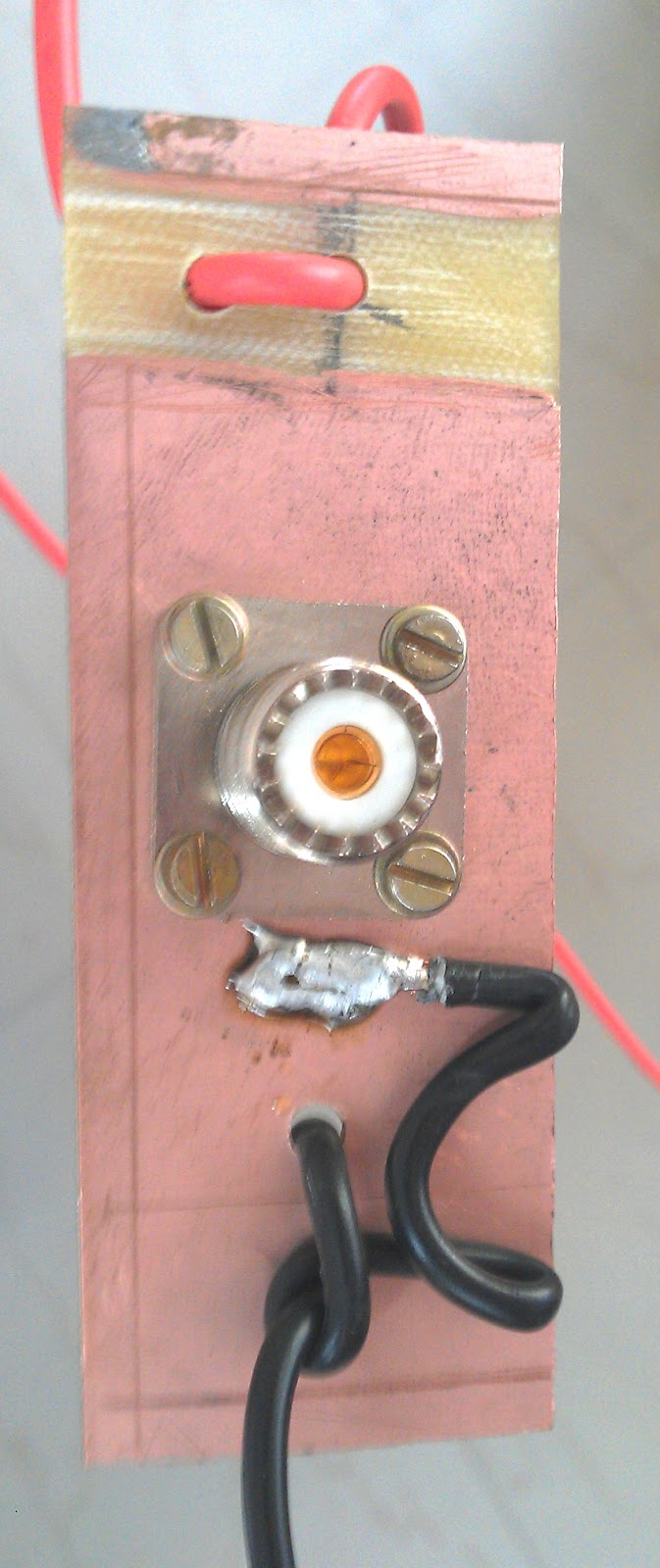

A UHF Connector is mounted on the copper plate
The Live is connected to the UHF Connector and the GND is soldered onto the copper plate directly

The over all antenna with the LIVE and GND wires connected to the UHF Connector

Back side
Team Members setting up the mast for supporting the antenna and co-axial cable

The mast has to be secured tightly to a strong base for support



The ends of the antenna being secured to another mast tightly with the insulator and nylon rope
Stephan sir securing the base for opposite end of the antenna

The GND wire is tied to the base with the insulator and nylon rope

The mast to safely and tightly secure to a strong base for good support.

The Balun and the UHF connector on the mast







7 comments:

  1. Why didnt you consider putting a 1:1 Current Balun into the PCB and potting the whole thing? Version 2 of this antenna perhaps.

    ReplyDelete
    Replies
    1. Hi Aravind,

      Thanks for the great idea. I guess we are going to go into testing mode now and once we try out the results will be posted.

      Again thanks for the suggestion...We value your ideas and suggestions.

      Team RnD

      Delete
  2. very well explained with photographs !!
    however, should have also included the details of making the RF choke balun.

    v kishore
    vu3ink

    ReplyDelete
  3. Hello,
    There is a simpler way to stand pole on the roof. Get hold of a old paint tin, which will be about 9 to 12" in height. Place a bamboo pole in it. Fill it with gravel or sand. If the pole is say 15 feet at about 5 feet level tie three GI wires as a tripod for support with the nearest possible structure. Before this have a egg insulator on the top of the pole with a rope to hoist the dipole.

    ReplyDelete
  4. How to Tune for Good SWR and Impedance Matching? I am getting High SWR while being used with a 40 Meter Transmitter?

    ReplyDelete
